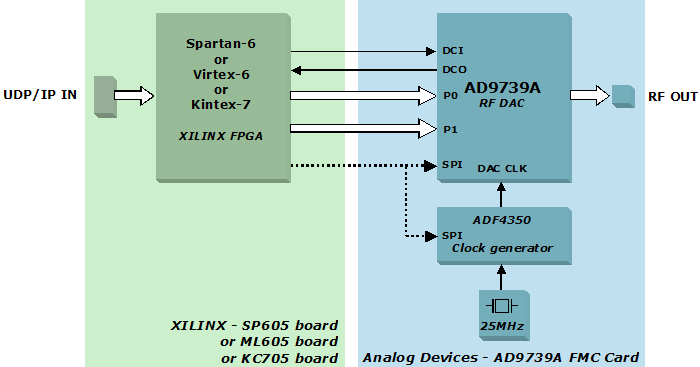

The evaluation platform converts an MPEG TS stream into an IF or RF signal (single or multi-channel) and supports most of the digital TV standards (DVB-C, J.83B, DVB-T, DVB-T2, ATSC, DVB-S, ...).
The evaluation platform can be used for the evaluation of our IP cores:

• DVB-C J.83 Annex A/C modulator
• J.83 B cable modulator
• DVB-T/H modulator
• DVB-T2 modulator
• ATSC modulator
• DVB-S modulator
• Digital RF Up Converter
• DVB Remultiplexer N-to-M
• Hardware UDP/IP stack
• RTP Receiver

Inputs/Ouputs

• 1 x UDP/IP input/output for MPEG TS input and IP cores registers configuration
  (RJ45 connector on Xilinx SP605/ML605/KC705 board)
• 1 x IF/RF output (SMA connector on Digilent board)

Typical applications

• Evaluation of MVD Cores’ IP cores (TS processing, Modulation, RF Up conversion)

AD9739A FMC Card details

• AD9739A Native FMC Card / Xilinx Reference Designs

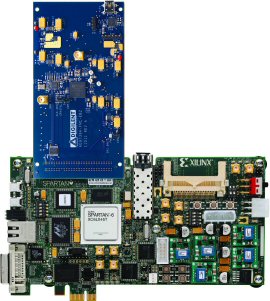

SP605 + AD9739A FMC Card
Click image to enlarge

KC705 + AD9739A FMC Card
Click image to enlarge

MVD Cores doesn’t directly sell the above evaluation boards.

Xilinx SP605, ML605 and KC705 boards are available from http://www.xilinx.com
Analog Devices AD9739A FMC card is available from http://wiki.analog.com
