IPTV Transmitter solutions



  IPTV Transmitter

  An IPTV Transmitter can be built from two MVD IP cores: UDP/IP Stack and RTP Transmitter.

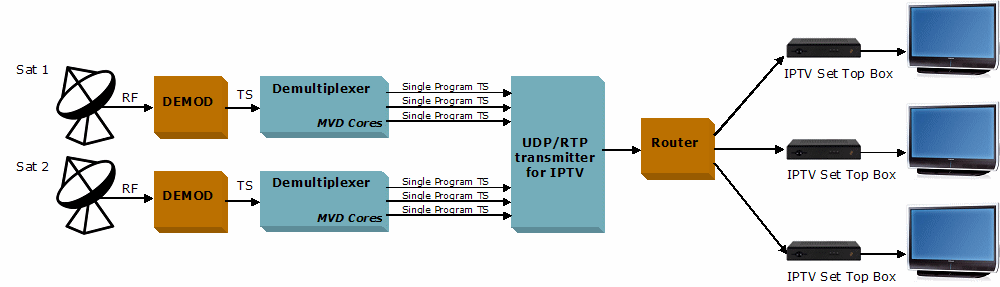

The IPTV Transmitter gets MPEG TS streams and send them in UDP/RTP packets to an Ethernet link		 UDP/RTP Transmitter for IPTV block diagram

Description

The IPTV Transmitter includes the following functions:
  • Full Hardware UDP/RTP Transmitter
  • MPEG TS (DVB-SPI) inputs
  • Emission of UDP/RTP packets compliant with SMPTE 2022-2-2007
  • Possibility to add a FEC protection (optional) to the RTP packets
    compliant with the SMPTE 2022-1-2007
  • Checksum validation of Ethernet, IP and UDP layers
  • RX UDP Ports filtering to receive UDP Data for customs applications
    (ports number 1024 to 65535 may be used in reception)
  • Ports 67 - 68 reserved to DHCP protocol
  • Maximum number of UDP/RTP channels depending on the FPGA resources,
    Ethernet speed connection and bit rate of input flows
   Features
  • 1 x Ethernet 100/1000
  • Supported protocols
    • ARP
    • IPv4
    • ICMP (Ping reply / Trace route)
    • UDP
    • MPEG2-TS UDP/RTP Transmission
    • Multicast Transmission
    • DHCP client (option)
    • FEC Protection (RTP Transmission only) (option)
  • CRC32 Ethernet validations
  • UDP port Filtering (option)
  • UDP/IP checksums validation
  • Programmable FPGA MAC address
  • Programmable FPGA static IP address
  • Programmable Multicast IP destination address for each channel
  • Programmable UDP destination address and source ports
  • Netlist version available for ISE 12.2 and later

Documentation
UDP/IP Stack product brief
RTP Transmitter product brief
