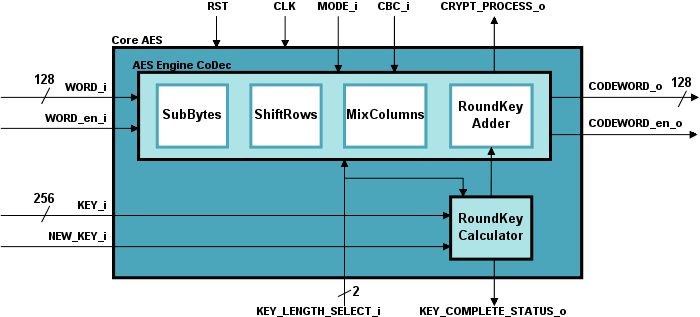

Description
The core is a drop-in module that
includes the following functions :
- 128/192/256-bit key size
- Automatic Roundkey calculation
- Encryption or decryption
functions are implemented in the
core
|
 |
|
Features
- Implements AES (Rijndael) to
latest NIST FIPS PUB 197
- Drop-in module for Spartan®-6,
Virtex®-6, Artix™-7,
Kintex™-7 and Virtex®-7
FPGAs
- Single clock
- Supports 128/192/256-bit key size
- Same core can be used for
encryption and decryption
- Automatic Roundkey generation
inside the core
- Update Key is allowed if an
encryption or decryption process
is running
- ECB (Electronic Code Book) and CBC (Cipher Block Chaining) are supported (please
contact MVD for other modes)
- > 200Mbps @ 125MHz (AES-128)
- > 170Mbps @ 125MHz (AES-192)
- > 150Mbps @ 125MHz (AES-256)
- Full synthesizable RTL VHDL
design (not delivered) for easy
customization
- Design delivered as Netlist
|
AES
